Reo Grippa
Accurate Block Wall Reinforcing
Block walls are designed with vertical reinforcing placed in a specific location to provide wall strength. Typically vertical reo is placed in the centre of the block or with 60mm cover to the block edge. If reinforcing is not placed in the specific location in the block the wall strength will be reduced and failure can occur.

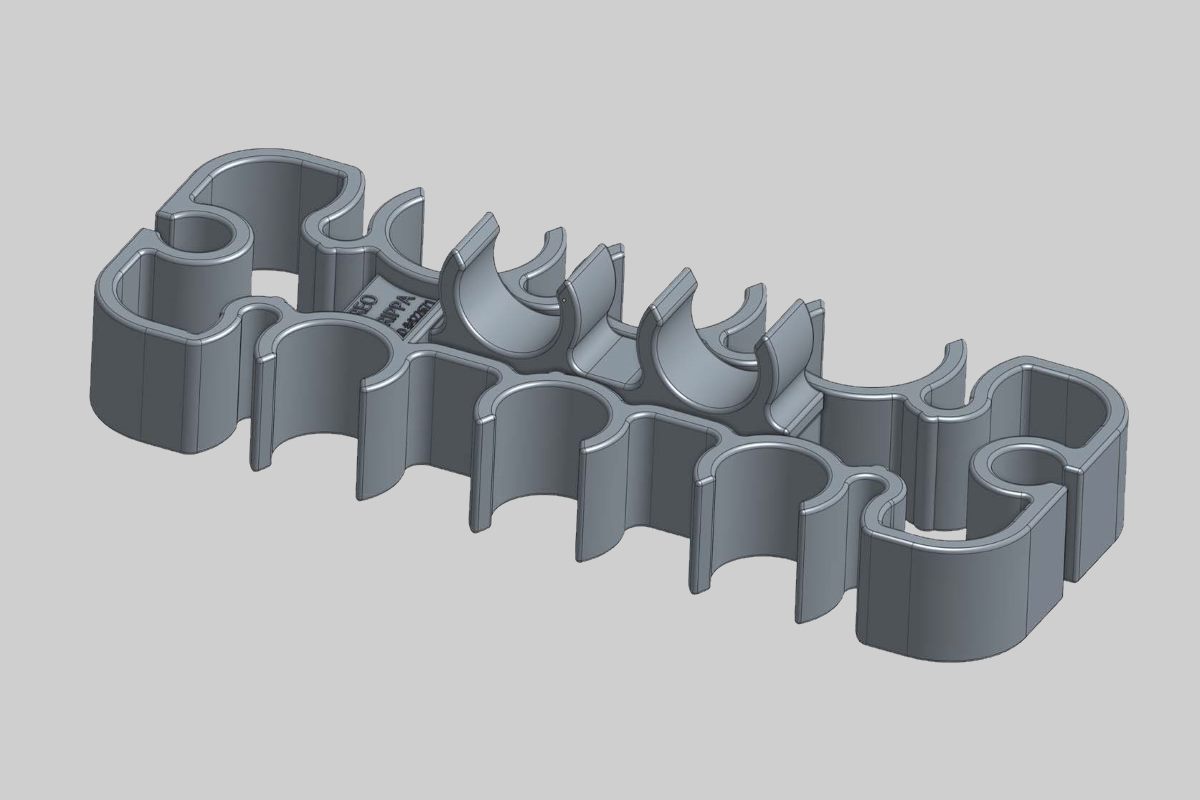

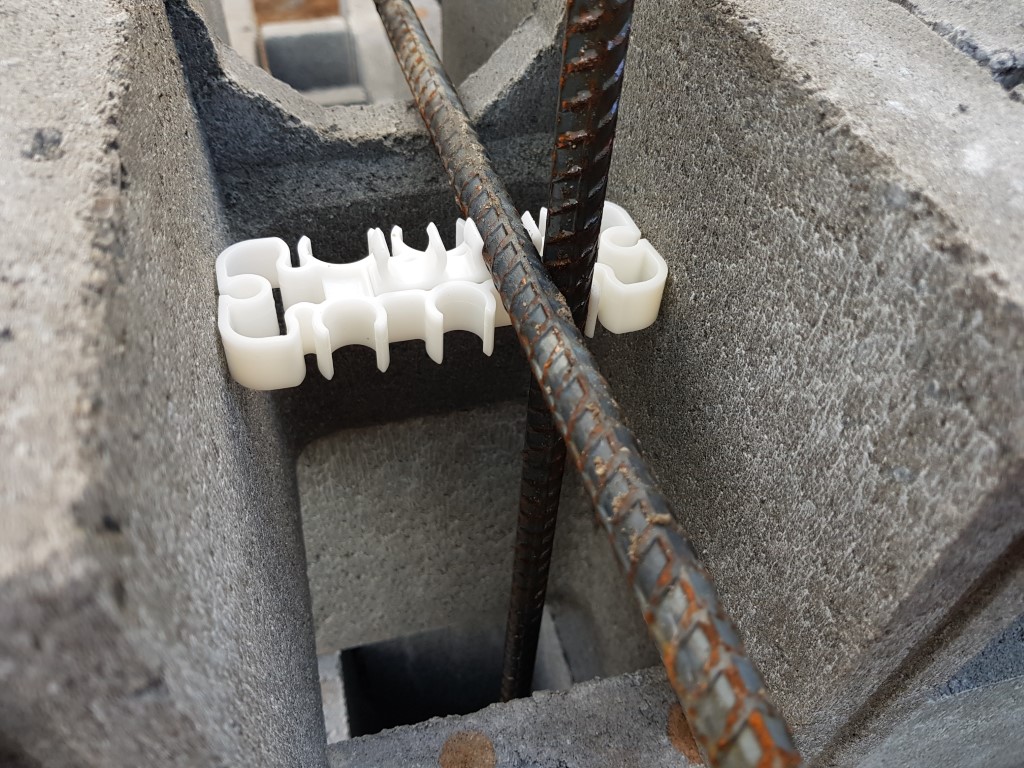

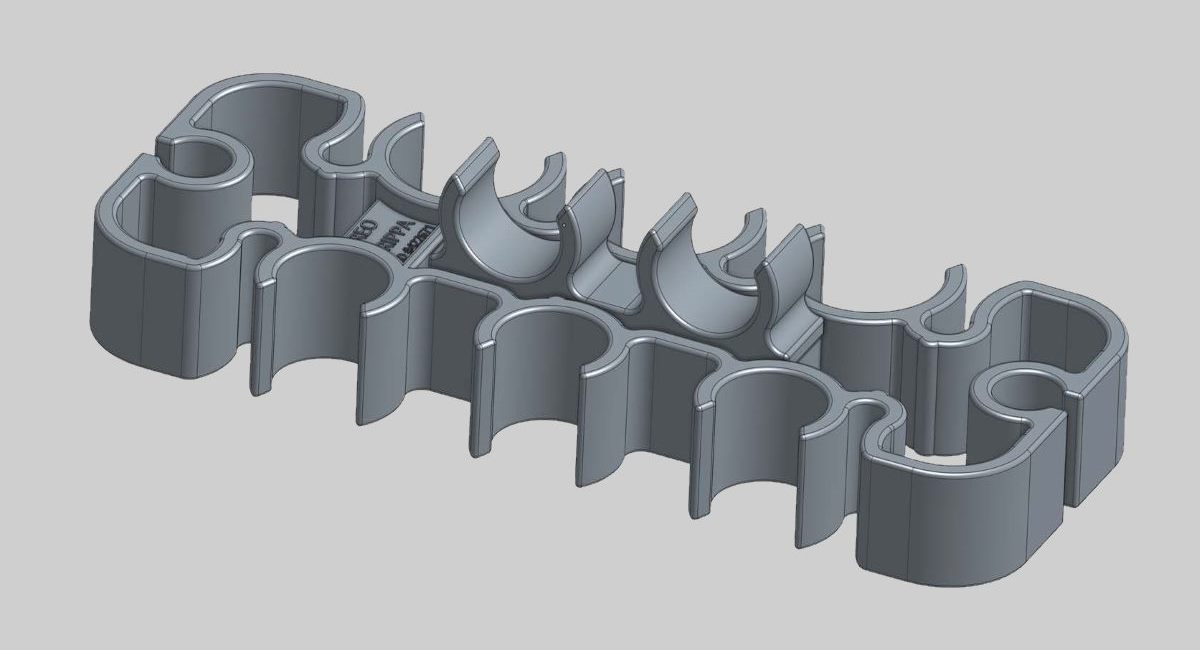

The Reo Grippa is a bar chair for block wall reinforcing bars. It’s a secure method of holding vertical reinforcing in blocks with the correct cover during concrete pouring.
- The Reo Grippa ensures that vertical bar placement complies with the masonry code tolerance of ±6mm location accuracy.
- Horizontal reo is also clipped on to the Reo Grippa so no wire tying is required.

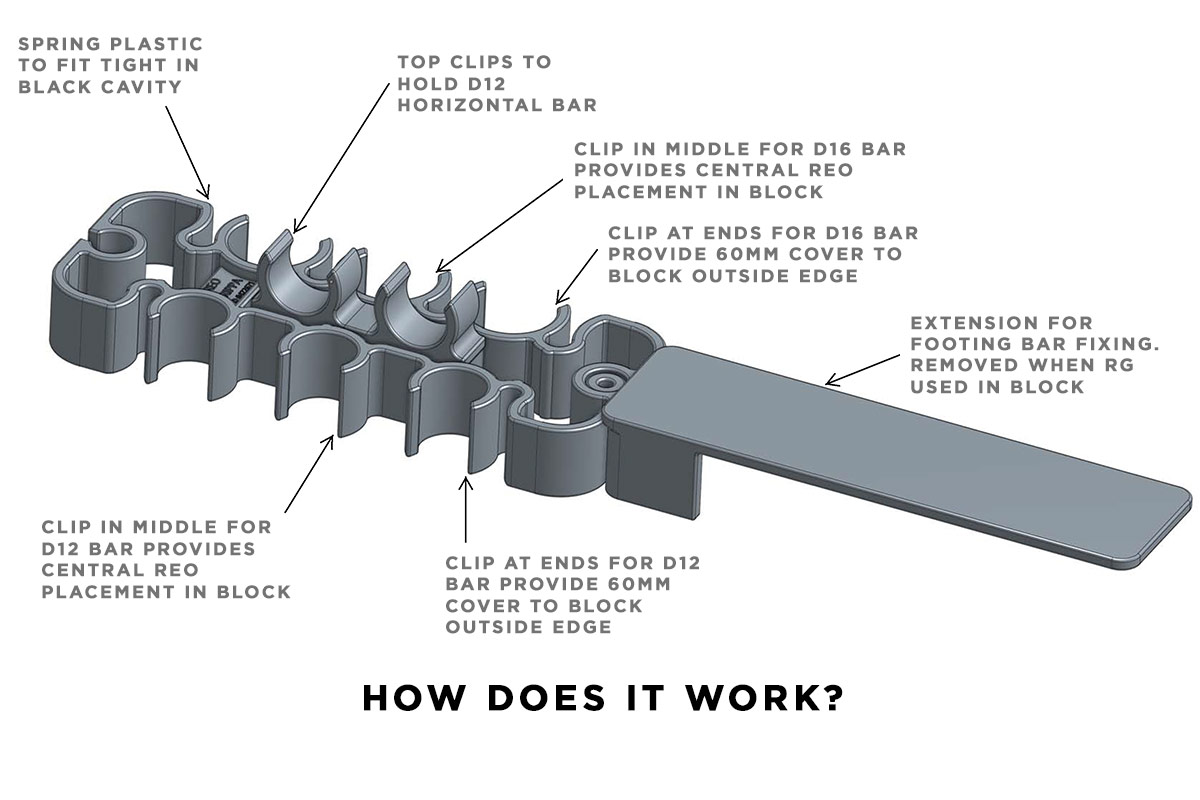

- Easy to use clip-on system for reo that fits tightly in the block cavity that provides 60mm cover to reo both side of the block and central reo placement for 12mm and 16mm bars.
- NZ designed and manufactured.
Secure Reo Bars
- Reo Grippa is also used to securely hold vertical reo bars in the block wall footing during concrete pour.
- Recycled plastic construction.
- Peace of mind for Block Layers, Councils and Engineers knowing vertical bars are held securely in the correct location within block walls and block wall footings during a concrete pour.
- Fits most commonly used 190 wide blocks.
- Enquire about sizes to suit 140 and 240 blocks.
SECURE YOUR BLOCK FOOTING BARS

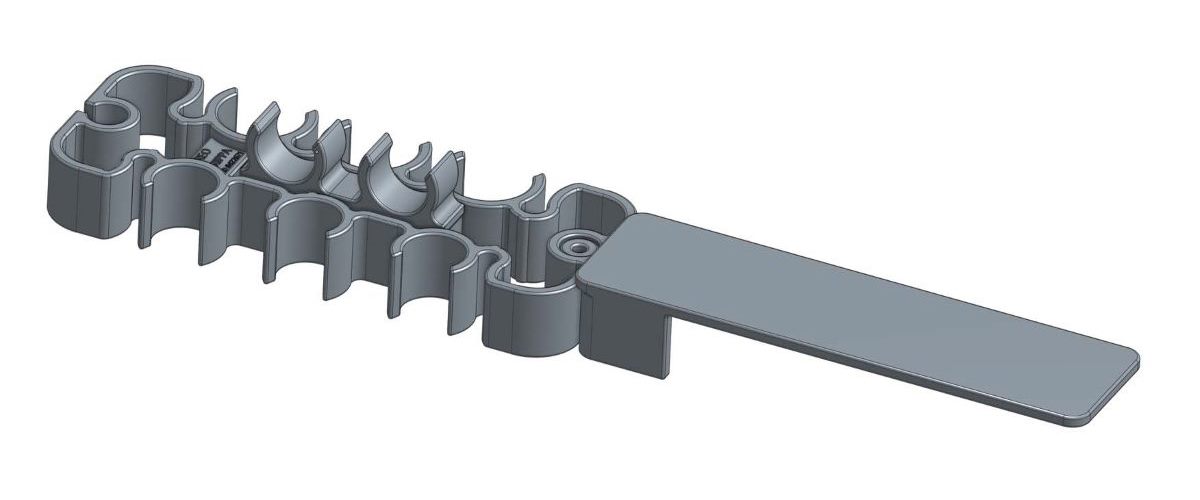

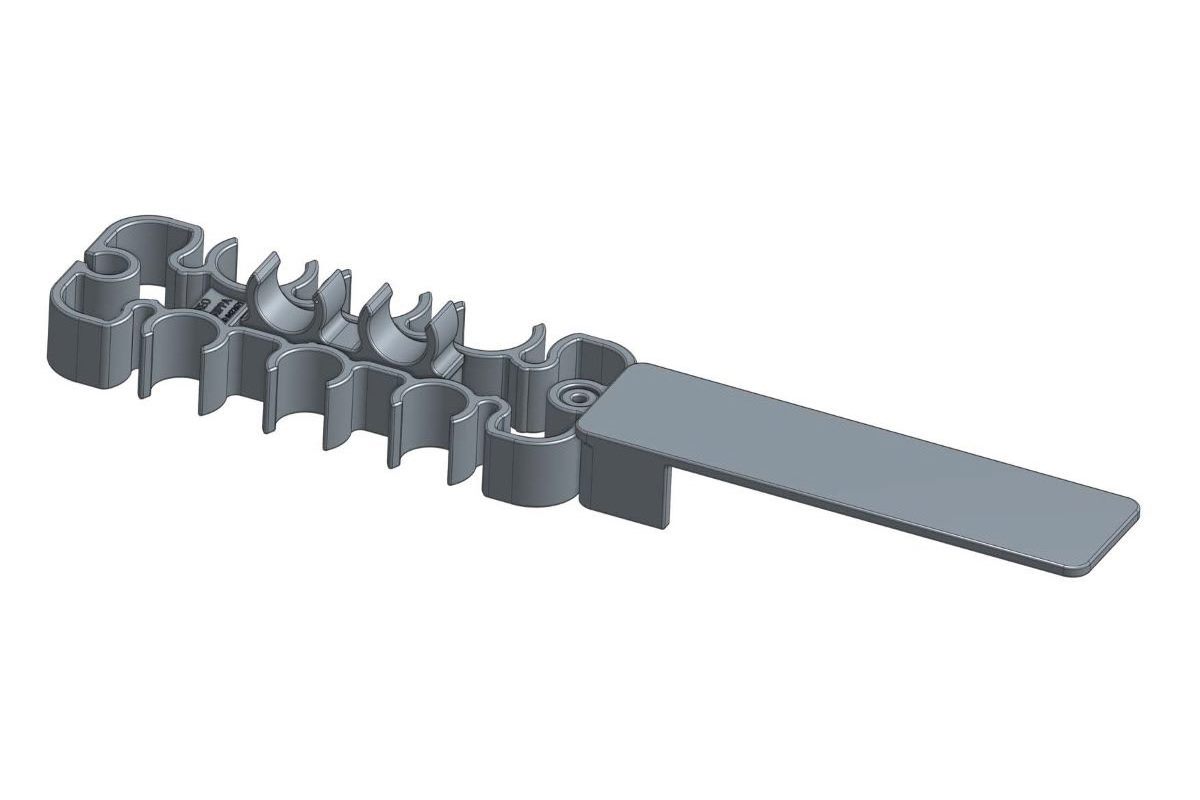

The Reo Grippa extension is fixed to the standard Reo Grippa block bracket. This makes it easy to clip the vertical footing reo onto the bracket and screw the extension part to the top of the boxing.
- Provides an easy way to get the correct cover for the vertical reo in the footing.
- Secure fixing of the footing reo while the footing concrete is poured.
- Fits D12 and D16 vertical reo bars.
- Footing can be used for 140, 190 and 240 block footings.
Benefits
Project: 20 series block wall 2.4 meters high and 10 meters long, vertical bars at 400mm centers, horizontal bars at 600mm centers.
Average construction cost of wall: Approximately $5000.
Number of Reo Grippa at all vertical and horizontal bar intersection = 100 brackets.
Approximate Bracket costs: $200
Average construction cost of wall: Approximately $5000.
Number of Reo Grippa at all vertical and horizontal bar intersection = 100 brackets.
Approximate Bracket costs: $200
Construction savings:
- No wire tying
- No lost time with incorrect bar placement
- Easy quick inspection by council/engineer
- No comebacks on reo placement
- Accurate clean construction
COPYRIGHT
REOGRIPPA bracket is a registered design, NZ No. 422671.
Under NZ Copyright & Intellectual Property Law it is not permitted to reproduce the REOGRIPPA bracket.
Features
Secure your block bars with The Reo Grippa.
